Remote Controller RC01 for XS01-WR Wireless Smoke Alarm

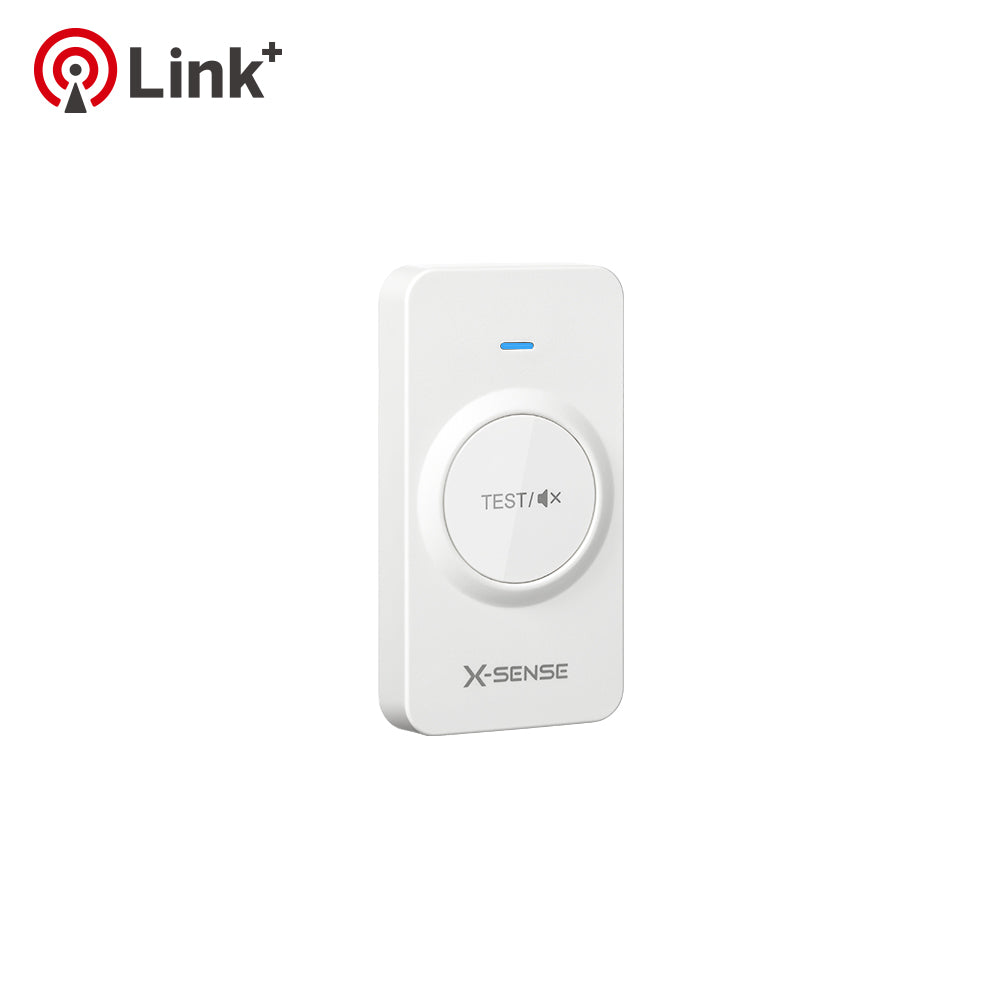

RC01 Remote Controller
Your Trusted Home Safety Innovator
RC01 Remote Controller for XS01-WR Wireless Smoke Alarms
One Button to Test & Hush
Easily test and silence all interconnected alarms without the need for ladders, broom handles, or sticks
Remote control range ≤ 15 m
Pair the Remote Controller with the X-Sense Alarm
1.Press the test button 4 times to enter pairing mode (The indicator is off during this process). The LED indicator on the remote controller will flash continuously.
2. Once pairing is successful, the LED indicator will light up and then go out in about 3 seconds, indicating that the controller has exited pairing automatically. Alternatively, you can press the test button again to exit pairing.
Test the Wireless Connection Between Alarms
1.Hold the test button while within wireless range. The LED indicator on the remote controller will flash.
2.After the alarms have received a signal (takes about 7 seconds), their LED indicators will flash and the alarms will sound continuously.
3.Release the test button. The LED indicator on the remote controller will stop flashing, indicating that the testing has ended.
Silence the Alarms
1. Simply press the test button to silence the alarms when non-emergency smoke (e.g. steam) causes nuisance alarms.
2. During an alarm state, press the test button once and all the interlinked alarms but the initiating alarm will be silenced. Press again to silence the initiating alarm. The LED indicator on the remote controller will blink blue with each press.
Test the Remote Controller’s Power Status
In standby mode (non-alarming state), when you press the test button, the LED indicator on the remote controller will blink blue, indicating a normal power supply.
